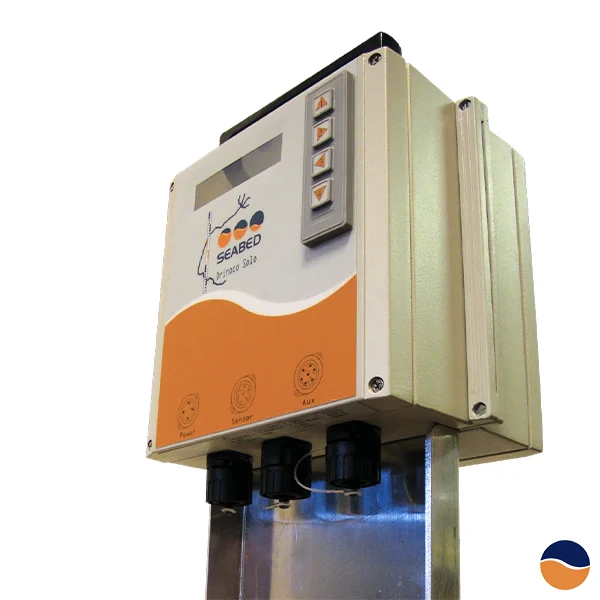

Seabed Orinoco Solo tide gauges multiple sensor data acquisition system. The basic unit is a high capacity data logger with up to eight analogue inputs and up to four RS232 inputs (optional) and one serial data output which supports multiple formats.
Based on the successful Orinoco line of tide gauges, the OrinocoSolo V3 is the latest offspring. The basic unit is a high capacity data logger with up to eight analogue inputs and up to four RS232 inputs (optional) and one serial data output which supports multiple formats.
Multiple analogue sensors can be connected. Sensor input ranges from 0- 10 Volts or 0 – 25 mA. Power is only applied to the sensors when measuring, so the total power consumption is minimized. For ratio metric sensors a reference voltage of 10.00 Volts is available.
The Orinoco Solo V3 stores data on a SD-Multimedia Card. These stamp-sized cards contain a minimum of 2GB of nonvolatile flash memory. Therefore your data is safe as soon as it is written to the card and will not be affected by power failures.
The Orinoco Solo has a RS-232 or RS-485 compatible output Orinoco Solo V3
which can be used to send data to a computer, modem or a wireless telemetry unit like radio, GSM, GPRS and Wifi.
The Orinoco Solo can be fitted with an externa Li-Ion battery pack for complete stand-alone operation. Battery voltage is monitored by the unit and transmitted if required. The Orinoco Solo V3 automatically powers down when a low battery voltage is detected.
The Seabed Orinoco Solo is used as a datalogger for tide & turbidity measurements, angle registration for a wirecranes, etc. The Orinoco Solo can be configurated on site.
The Orinoco Solo V3 comes with dedicated Windows based software for easy configuration and to manage the data stored on the SD card.
